PCL 1200W 2U Rack Mounted DC Power Supply 6V 200A to 600V 2A
PCL 1200W 2U Rack Mounted DC Power Supply 6V 200A to 600V 2A
- 1200W Rack Mounted DC Power Supply
- Output ratings from 6V 200A to 600V 2A
- 2U full rack design
- Low ripple 50mV 100mV 200mV
- List mode function
- Auto Run function
- Remote sensing function
- Interlock loop function
- No overshoot during startup
- Soft start by hardware, and adjustable voltage rise time by software
- Multiple protections: OVP, OTP, ACF and current limit protections
- Standard interface: RS232 & RS485, support ModBus-RTU commands
- Options: DC 0-5V, 0-10V or 4mA interface for control and feedback
- Options: LAN interface
Quote Now
Twintex PCL series 600W and 1200W Compact Programmable DC Power Supplies are designed in 2U half width size, available with voltage ratings from 20V to 600V.

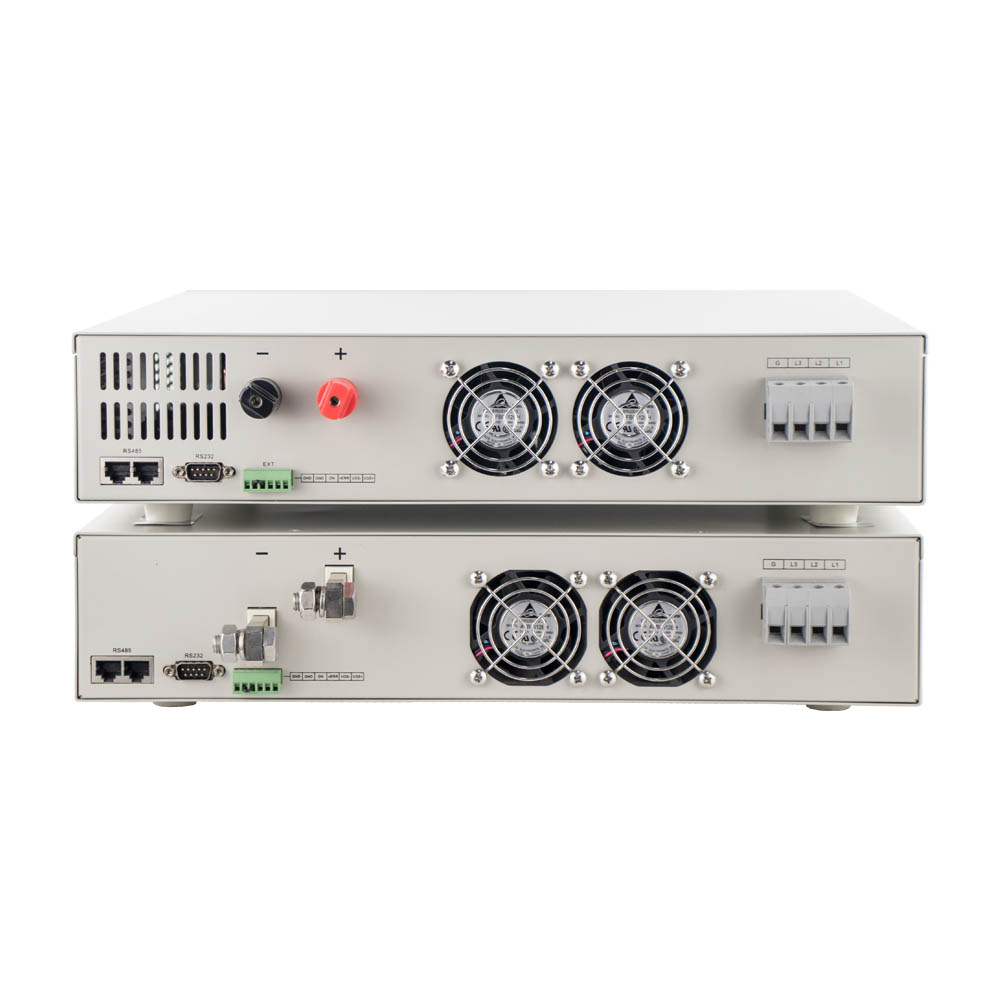

The 600W and 1200W Compact Programmable DC Power Supplies are designed for both bench top applications and rack systems. Two power supplies can be built into a 2U full rack as shown in photos on the right, making total power 2400W from a single rack with two test stations. Each power supply is independent in AC input, DC output and remote control.
The 1200W programmable DC power supplies are also available in 2U full rack design, covering higher output current ratings. Please refer to PCL 1200W 2U series.
Featuring high stability and programmability, these power supplies can be easily integrated to burn-in testing and functional testing for production lines, as well as ATE system integration. Typical applications are listed in below.
- 20V 60A & 30V 40A 1200W Programmable DC Power Supply PCL1200S-20S & PCL1200-30S: For long-term burn-in and routine testing of low voltage electronic components such as resistors, relays, and motors; burn-in for electrolytic capacitors and reforming for tantalum capacitors.
- 60V 20A 1200W Programmable DC power supply PCL1200-60S: For functional testing and burn-in for consumer electronics testing, such as computers, peripherals, and communication equipment; testing of PC motherboards and integrated circuits.
- 300V 4A 1200W Programmable DC power supply PCL1200-3HS: For burn-in testing of PCBAs containing high-voltage circuits (such as motor drives and home appliance control boards), component performance.
- 600V 2A 1200W Programmable DC power supply PCL1200-6HS: For production testing and burn-in testing of high-voltage components, such as 400V 600V diodes,600V capacitors, 600V MOSFET.
Product Parameters
PCL 1200W 2U Rack Mounted DC Power Supply 6V 200A to 600V 2A
| Model | Rated Output | Model | Rated Output | |||||
| V | A | W | V | A | W | |||
| PCL1200-6 | 6V | 200A | 1200W | |||||
| PCL1200-12 | 12V | 100A | 1200W | PCL2400-12 | 12V | 200A | 2400W | |
| PCL1200-15 | 15V | 80A | 1200W | PCL2400-20 | 20V | 120A | 2400W | |
| PCL1200-20 | 20V | 60A | 1200W | PCL2400-30 | 30V | 80A | 2400W | |
| PCL1200-30 | 30V | 40A | 1200W | PCL2400-40 | 40V | 60A | 2400W | |
| PCL1200-60 | 60V | 20A | 1200W | PCL2400-60 | 60V | 40A | 2400W | |
| PCL1200-1H | 100V | 12A | 1200W | PCL2400-1H | 100V | 24A | 2400W | |
| PCL1200-120 | 120V | 10A | 1200W | PCL2400-120 | 120V | 20A | 2400W | |
| PCL1200-150 | 150V | 8A | 1200W | PCL2400-150 | 150V | 16A | 2400W | |
| PCL1200-2H | 200V | 6A | 1200W | PCL2400-2H | 200V | 12A | 2400W | |
| PCL1200-3H | 300V | 4A | 1200W | PCL2400-3H | 300V | 8A | 2400W | |
| PCL1200-4H | 400V | 3A | 1200W | PCL2400-4H | 400V | 6A | 2400W | |
| PCL1200-5H | 500V | 2.4A | 1200W | PCL2400-5H | 500V | 4.8A | 2400W | |
| PCL1200-6H | 600V | 2A | 1200W | PCL2400-6H | 600V | 4A | 2400W | |
| Dimensions | Current < 100A: 425W×88H×463D mm (2U) Current ≥100A: 425W×88H×503D mm (2U-L) | |||||||
| Weight | Approx 11kg | |||||||
| AC Input | 1φ3W, 220V±10% 47~63Hz (at default) 1φ3W (L, N, PE), 110V±10% 47~63Hz (at request) | |||||||
For the purpose of product improvement, specifications are subject to change without prior notice.
Why Choose Us.
Frequently Asked Questions
A DC power supply is to supply voltage and current in constant voltage (CV) or constant current (CC) mode within the rated output range. Such working characteristics is called a constant voltage/constant current automatic cross-over type. This permits continuous transition from constant current to constant voltage modes in response to the load change. The intersection of constant voltage and constant current modes is called the crossover point. Below figure shows the relationship between this crossover point and the load.
In CV mode, a regulated output voltage is provided. The output voltage remains constant as the load increases while the output current changes in response to the load changes, up till the present current limit point is reached. At that point, the output current becomes constant and the output voltage drops in proportion to the further increases in load.
Similarly, in CC mode, crossover from the CC to CV mode automatically occurs from a decrease in the load. A regulated output current is provided. The output current remains constant as the load decreases while the output voltage changes in response to the load changes.
A power supply with CV and CC operation mode can be operated in only one mode according to load situation. The power supply is in CV mode when the actual load is over the preset load capacity; and the power supply is in CC mode when the actual load is below the preset load capacity.
When the power supply is connected to a big capacitive load, it always causes increase to the output voltage in a power supply. The output voltage may make fast increase to the Over Voltage Protection point. It may also cause slow decrease when the output voltage is turned down.
To solve this problem, connect a power resistor in parallel to the output terminals of the power supply; at the same time, connect a diode in serial between output terminals and the load.
When an inductive load is connected to the power supply, it will cause a reverse polarity induction electric motive force when the power supply is turned on or off, or when preset the output voltage. The pulse noise caused by an inductive load will also affect the power supply, especially when the pulse noise has the same polarity with the output of power supply.
To avoid effect or damage to the power supply, connect a diode in serial between the output terminals of power supply and the load; at the same time, connect a power resistor and a capacitor in parallel to the load to make a R-C snubbed circuit, which will significantly restraint generation of the noise.
When use the power supply to charge a battery, such as accumulator and ni-mh battery, the recommended protection measures is to connect a diode between the power supply and the battery. When the output electrolytic capacitor of the power supply is charged, connecting a load (battery) may cause sparks. This is normal. After the two of them get to equal voltage, the sparks will disappear.
Even if the peak current of a pulse load, such as motor, bulb, DC-DC or DC-AC converter module, does not exceed the rated current of the power supply, it will also cause voltage drop or instability to the output.
A basic solution is to connect a inductor in serial between the power supply and the load. Or, choose a power supply with higher rated current.
If the pulse circuit has a small pulse width or low peak current, another solution is to connect a capacitor with large capacity. A reference to choose capacity of a capacity is: 1000uF capacity to a 1A current.
When the power supply is connected to a load that will cause reverse polarity current to the power supply output, the output voltage will increase, because the power supply cannot absorb the reverse polarity current from the load.
A solution is to connect a diode in serial between the output terminal and the load; at the same time, connect a discharge resistor in parallel to the load to absorb the reverse polarity current. When the reverse polarity current is a peak surge, connect the large electrolytic capacitor in parallel to the two ends of the load.
