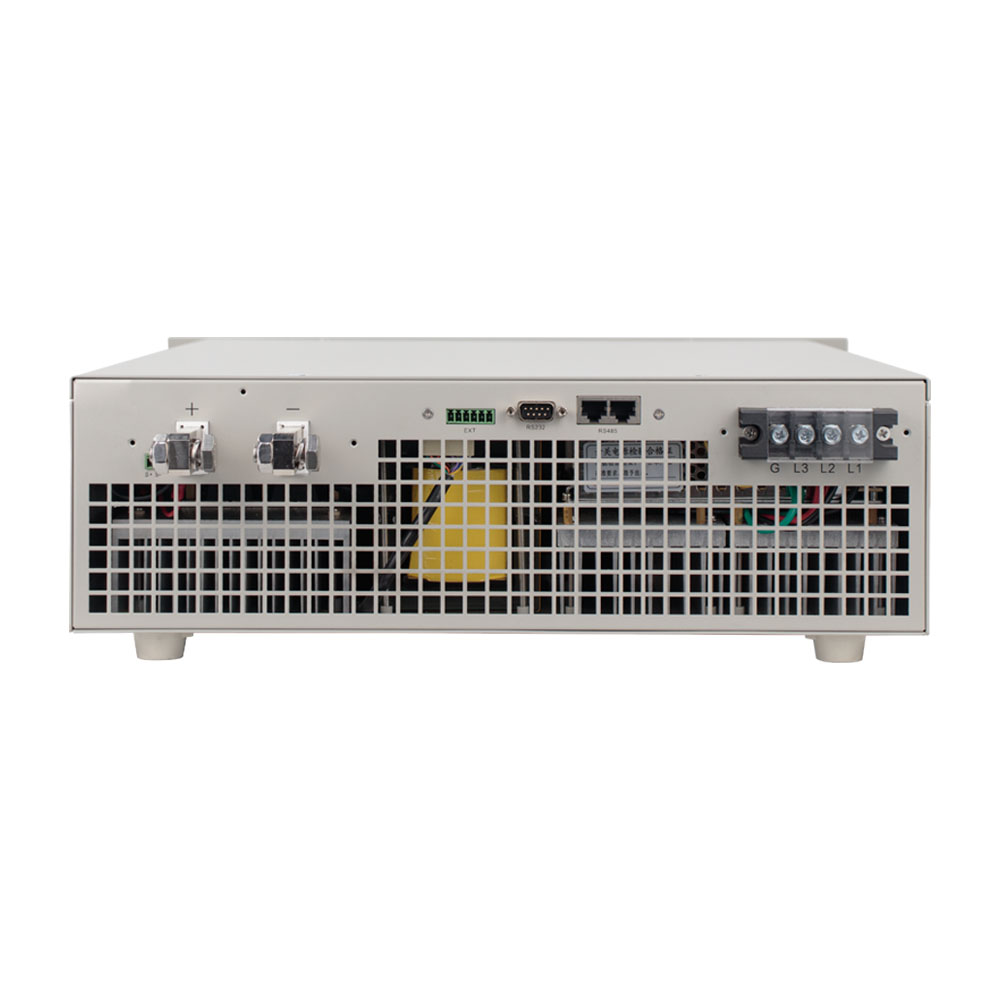

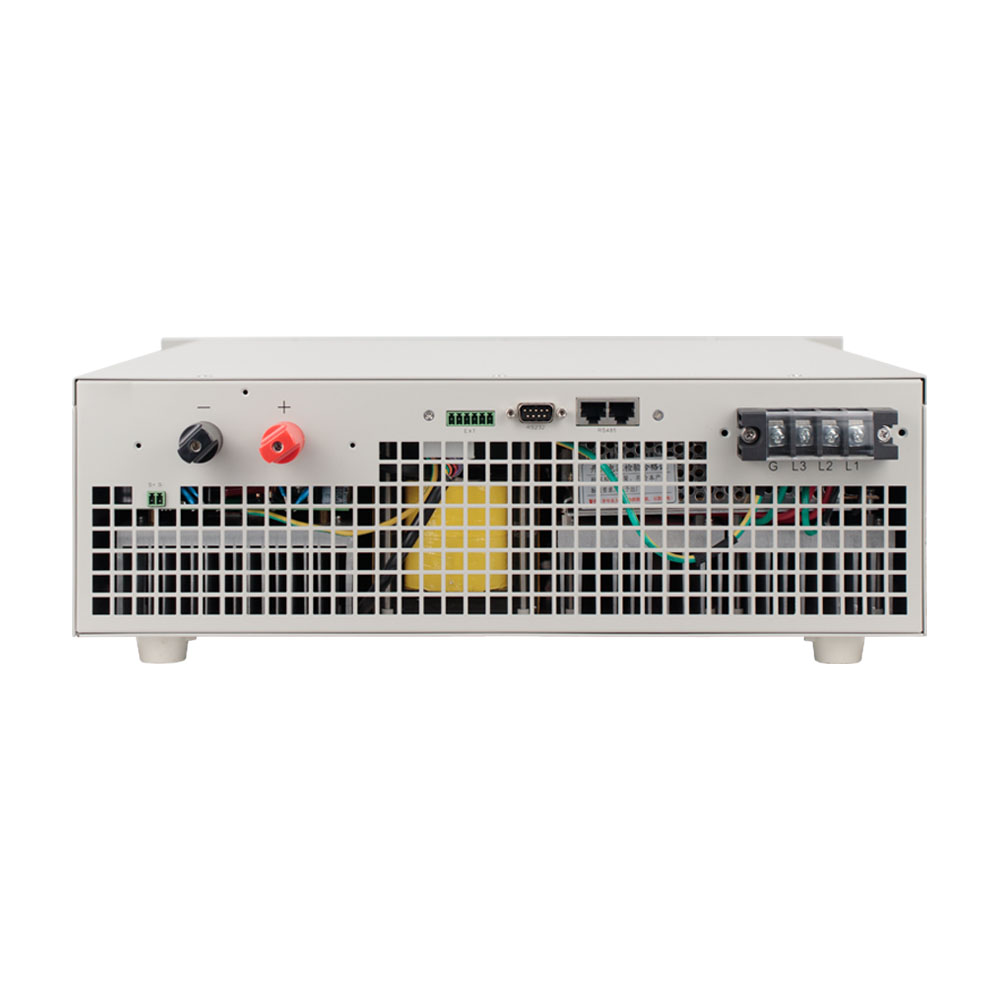

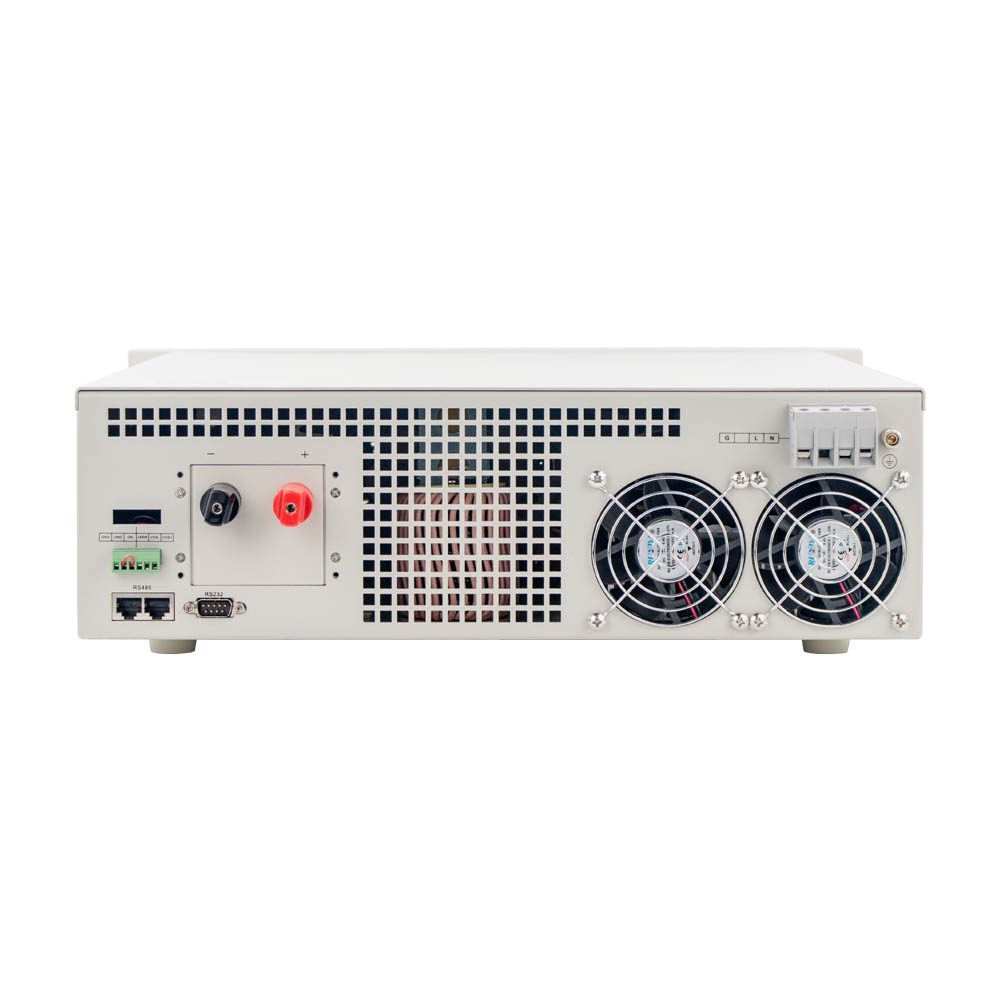

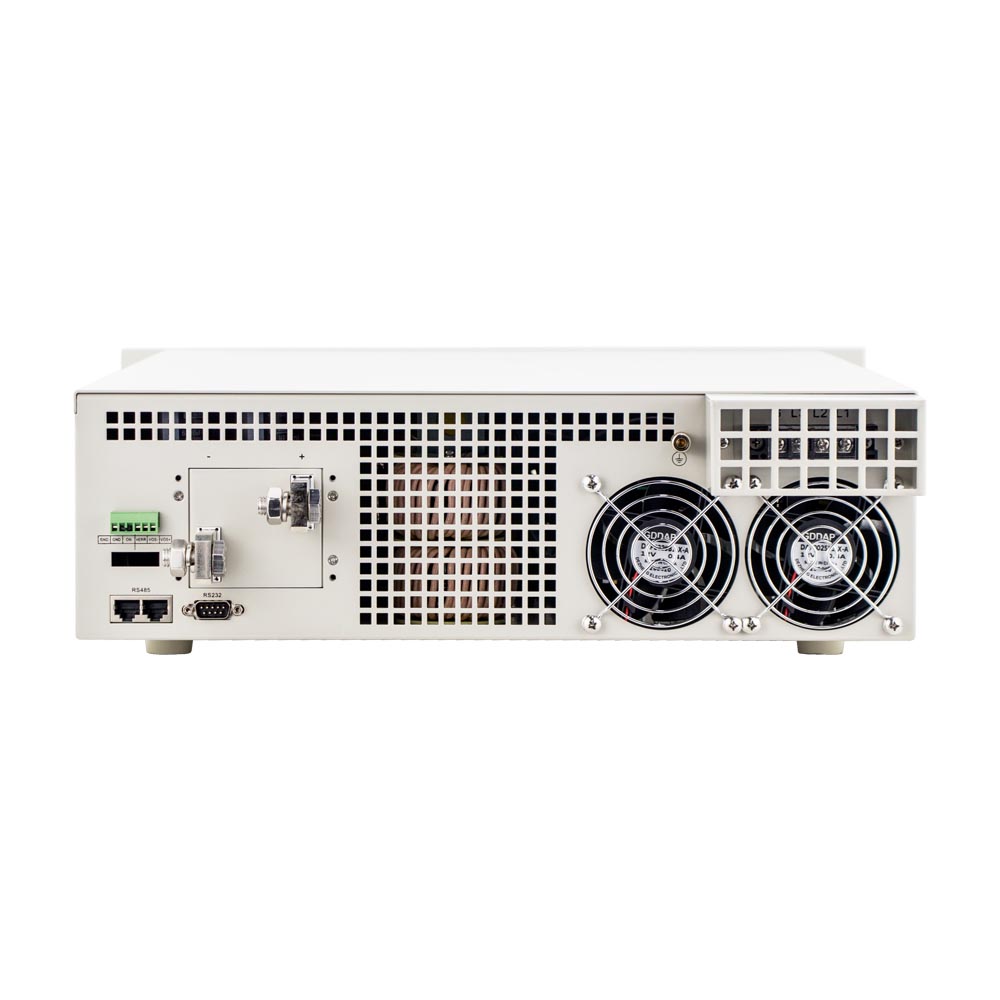

PCL 3U Rack 8kW (8000W) Programmable DC Power Supply 40V 200A & 80V 100A to 800V 10A
PCL 3U Rack 8kW (8000W) Programmable DC Power Supply 40V 200A & 80V 100A to 800V 10A
- 8kW (8000W) Programmable DC Power Supply
- Output ratings from 40V 200A & 80V 100A to 800V 10A
- 3U rack-mount design
- Low ripple 50mV 100mV 200mV
- List mode function
- Auto Run function
- Remote sensing function
- Interlock loop function
- No overshoot during startup
- Soft start by hardware, and adjustable voltage rise time by software
- Multiple protections: OVP, OTP, ACF and current limit protections
- Standard interface: RS232 & RS485, support ModBus-RTU commands
- Options: DC 0-5V, 0-10V or 4mA interface for control and feedback
- Options: LAN interface
Twintex PCL 8kW (8000W) series programmable DC power supply is purpose-built for burn-in testing applications. Delivering 8kW of output power in a 3U rack chassis, it facilitates easy integration to form large-scale burn-in systems. With output voltage ranges spanning 30V to 800V (across multiple models), it meets the power supply requirements for burn-in testing of diverse devices, such as LED drivers, PV inverters, and EV components.
Equipped with RS232 and RS485 communication interfaces, the unit integrates seamlessly into centralized burn-in room monitoring systems, enabling real-time recording of voltage and current data for product yield traceability. Its low-ripple design ensures consistent burn-in conditions, preventing false assessments caused by ripple interference. The robust structural design supports continuous full-load operation for 24 hours, perfectly suiting the long-duration, high-intensity nature of burn-in testing.
Comprehensive built-in protection mechanisms—including OVP (Over-Voltage Protection), OTP (Over-Temperature Protection), ACF (AC Input Fault Protection), and output short-circuit current limiting—effectively mitigate risks during prolonged operation, ensuring the safe and stable functioning of the burn-in production line.
Models with different voltage/current combinations meet different application scenarios. The following outlines the suitable test and application scenarios for each model, arranged from lowest to highest output voltage.
40V 200A 8kW (8000W) Programmable DC Power Supply PCL8000-40: Low-voltage, high-current type
- Electrical and electronic product burn-in testing: Serves as production-line burn-in equipment for long-term stability testing of various electrical and electronic products. Provides adjustable, low-ripple regulated DC voltage or current.
- Circuit protection device testing: Simulates real-world overload conditions for testing circuit breakers and fuse blowing characteristics.
80V 100A 8kW (8000W) Programmable DC Power Supply PCL8000-80: Medium-voltage, high-current type
- Automotive electrical component testing: Supplies stable power and surge currents for automotive electrical components.
- Production line product testing: Functions as a fixed power supply on production lines for product testing.
400V 20A 8kW (8000W) Programmable DC Power Supply PCL8000-4H: High-voltage, medium-current type
- Telecommunications and power equipment testing: Provides stable high-voltage DC power and testing capabilities for communication equipment, DC power systems, and more.
- ATE (Automatic Test Equipment) integration: Voltage and power ratings make it suitable as a standard component for integration into various automated test systems.
800V 10A 8kW (8000W) Programmable DC Power Supply PCL8000-8H: High-voltage, low-current type
- High-voltage component burn-in: Suitable for high-voltage burn-in testing of EV-related components, LED drivers, and similar products.
- General high-voltage testing: Applicable to laboratory R&D for high-voltage DC systems, high-voltage battery charging, and other general high-voltage applications.

Product Parameters
PCL 3U Rack 8kW (8000W) Programmable DC Power Supply 40V 200A & 80V 100A to 800V 10A
| Model | Rated Output | Model | Rated Output | |||||
| V | A | W | V | A | W | |||
| PCL6000-20 | 20V | 300A | 6kW | |||||
| PCL6000-30 | 30V | 200A | 6kW | PCL8000-30 | 30V | 267A | 8kW | |
| PCL6000-40 | 40V | 150A | 6kW | PCL8000-40 | 40V | 200A | 8kW | |
| PCL6000-60 | 60V | 100A | 6kW | PCL8000-50 | 50V | 160A | 8kW | |
| PCL6000-1H | 100V | 60A | 6kW | PCL8000-60 | 60V | 133A | 8kW | |
| PCL6000-120 | 120V | 50A | 6kW | PCL8000-1H | 100V | 80A | 8kW | |
| PCL6000-150 | 150V | 40A | 6kW | PCL8000-150 | 150V | 53A | 8kW | |
| PCL6000-2H | 200V | 30A | 6kW | PCL8000-2H | 200V | 40A | 8kW | |
| PCL6000-3H | 300V | 20A | 6kW | PCL8000-3H | 300V | 26.7A | 8kW | |
| PCL6000-4H | 400V | 15A | 6kW | PCL8000-4H | 400V | 20A | 8kW | |
| PCL6000-5H | 500V | 12A | 6kW | PCL8000-5H | 500V | 16A | 8kW | |
| PCL6000-6H | 600V | 10A | 6kW | PCL8000-6H | 600V | 13.3A | 8kW | |
| PCL6000-8H | 800V | 7.5A | 6kW | PCL8000-8H | 800V | 10A | 8kW | |
| Dimensions | 482.6Wx132.5Hx533D mm (3U) | |||||||
| Weight | Approx 20~21kg | |||||||
| AC Input | 3φ4W (L1, L2, L3, PE), 380V±10% 47~63Hz (at default) 1φ3W (L, N, PE), 220V±10% 47~63Hz (at request, only for 6kW models) | |||||||
For the purpose of product improvement, specifications are subject to change without prior notice.
Why Choose Us.
Frequently Asked Questions
A DC power supply is to supply voltage and current in constant voltage (CV) or constant current (CC) mode within the rated output range. Such working characteristics is called a constant voltage/constant current automatic cross-over type. This permits continuous transition from constant current to constant voltage modes in response to the load change. The intersection of constant voltage and constant current modes is called the crossover point. Below figure shows the relationship between this crossover point and the load.

In CV mode, a regulated output voltage is provided. The output voltage remains constant as the load increases while the output current changes in response to the load changes, up till the present current limit point is reached. At that point, the output current becomes constant and the output voltage drops in proportion to the further increases in load.
Similarly, in CC mode, crossover from the CC to CV mode automatically occurs from a decrease in the load. A regulated output current is provided. The output current remains constant as the load decreases while the output voltage changes in response to the load changes.
A power supply with CV and CC operation mode can be operated in only one mode according to load situation. The power supply is in CV mode when the actual load is over the preset load capacity; and the power supply is in CC mode when the actual load is below the preset load capacity.
When the power supply is connected to a big capacitive load, it always causes increase to the output voltage in a power supply. The output voltage may make fast increase to the Over Voltage Protection point. It may also cause slow decrease when the output voltage is turned down.
To solve this problem, connect a power resistor in parallel to the output terminals of the power supply; at the same time, connect a diode in serial between output terminals and the load.

When an inductive load is connected to the power supply, it will cause a reverse polarity induction electric motive force when the power supply is turned on or off, or when preset the output voltage. The pulse noise caused by an inductive load will also affect the power supply, especially when the pulse noise has the same polarity with the output of power supply.
To avoid effect or damage to the power supply, connect a diode in serial between the output terminals of power supply and the load; at the same time, connect a power resistor and a capacitor in parallel to the load to make a R-C snubbed circuit, which will significantly restraint generation of the noise.

When use the power supply to charge a battery, such as accumulator and ni-mh battery, the recommended protection measures is to connect a diode between the power supply and the battery. When the output electrolytic capacitor of the power supply is charged, connecting a load (battery) may cause sparks. This is normal. After the two of them get to equal voltage, the sparks will disappear.

Even if the peak current of a pulse load, such as motor, bulb, DC-DC or DC-AC converter module, does not exceed the rated current of the power supply, it will also cause voltage drop or instability to the output.
A basic solution is to connect a inductor in serial between the power supply and the load. Or, choose a power supply with higher rated current.
If the pulse circuit has a small pulse width or low peak current, another solution is to connect a capacitor with large capacity. A reference to choose capacity of a capacity is: 1000uF capacity to a 1A current.

When the power supply is connected to a load that will cause reverse polarity current to the power supply output, the output voltage will increase, because the power supply cannot absorb the reverse polarity current from the load.
A solution is to connect a diode in serial between the output terminal and the load; at the same time, connect a discharge resistor in parallel to the load to absorb the reverse polarity current. When the reverse polarity current is a peak surge, connect the large electrolytic capacitor in parallel to the two ends of the load.
