AHV 10kV 100mA High Voltage AC Power Supply for Dielectric Barrier Discharge (DBD)
AHV 10kV 100mA High Voltage AC Power Supply for Dielectric Barrier Discharge (DBD)
- AHV 10kV 100mA 1000W series high voltage AC power Supply
- 4 digits LED display for voltage, current and frequency
- Rated output AC 10kV (20kVpp) 100mA 1000W
- Fixed frequency 3kHz, 8kHz, 5kHz, 10kHz, 20kHz, 30kHz, 40kHz, 50kHz, 100kHz
- Adjustable frequency 5kHz to 100kHz
- Other voltage, frequency and power range at request
Quote Now
AHV 10kV 100mA series high voltage AC power supply are specialized units designed for Dielectric Barrier Discharge (DBD) applications, including Surface Dielectric Barrier Discharge (SDBD), providing variable high voltage 0 to 10kV peak (20kV peak to peak) at high frequencies.
AHV 10kV 100mA series high voltage AC power supply deliver stable 10kV (20kV peak to peak) voltage either at a fixed frequency in kHz or an adjustable range.
Options of fixed frequency range: 3kHz, 8kHz, 5kHz, 10kHz, 20kHz, 30kHz, 40kHz, 50kHz, 100kHz
Options of adjustable frequency range: 5kHz ~ 10kHz; 10kHz ~ 20kHz; 10kHz ~ 30kHz; 20kHz ~ 30kHz; 20kHz ~ 40kHz; 20kHz ~ 50kHz; 30kHz ~ 40kHz; 30kHz ~ 50kHz; 50kHz ~ 100kHz

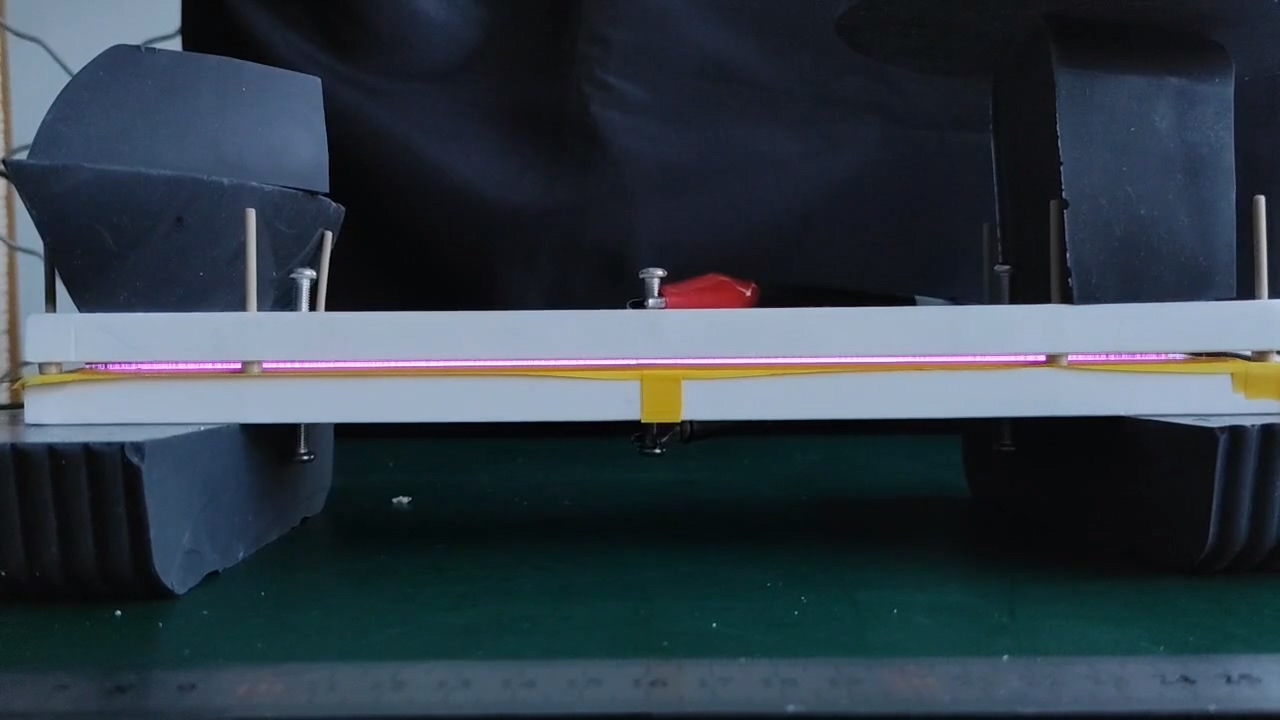

A DBD device always contains two electrodes, in which at least one of the electrodes is covered by a dielectric material. Glass, alumina, polymer films, water and electrolyte can be used as dielectric materials. There is a discharge space between the electrode and the dielectric. When a high-frequency AC voltage 10kV is applied between two electrodes, DBD plasma is generated in the gap between the electrode and the dielectric.
DBDs are used in a wide range of applications. Typical DBD applications include:
- Ozone generation and UV generation: widely used for water purification and sterilization.
- Surface treatment: improves adhesion on plastics and polymers.
- Plasma jets: used in aerodynamics for controlling airflow.
- Biomedicine: used in sterilization of packaging and food, as well as activation, cleaning.
Product Parameters
AHV 10kV 400mA High-Voltage AC power supply for Plasma Generation
| Model (10kV) | Output Range | Model (10kV) | Output Range | |||||||
| Peak Voltage | Max Current | Power | Frequency | Peak Voltage | Max Current | Power | Frequency | |||
| AHV10-400-FF1K | 0~10kV | 0~400mA | 4000W | Fixed 1kHz | AHV10-400-AF2-8K | 0~10kV | 0~400mA | 4000W | Adjustable 2kHz to 8kHz | |
| AHV10-400-FF2K | 0~10kV | 0~400mA | 4000W | Fixed 2kHz | AHV10-400-AF5-10K | 0~10kV | 0~400mA | 4000W | Adjustable 5kHz to 10kHz | |
| AHV10-400-FF3K | 0~10kV | 0~400mA | 4000W | Fixed 3kHz | AHV10-400-AF10-20K | 0~10kV | 0~400mA | 4000W | Adjustable 10kHz to 20kHz | |
| AHV10-400-FF4K | 0~10kV | 0~400mA | 4000W | Fixed4kHz | AHV10-400-AF10-30K | 0~10kV | 0~400mA | 4000W | Adjustable 10kHz to 30kHz | |
| AHV10-400-FF5K | 0~10kV | 0~400mA | 4000W | Fixed 5kHz | AHV10-400-AF10-40K | 0~10kV | 0~400mA | 4000W | Adjustable 10kHz to 40kHz | |
| AHV10-400-FF8K | 0~10kV | 0~400mA | 4000W | Fixed 8kHz | AHV10-400-AF10-50K | 0~10kV | 0~400mA | 4000W | Adjustable 10kHz to 50kHz | |
| AHV10-400-FF10K | 0~10kV | 0~400mA | 4000W | Fixed 10kHz | AHV10-400-AF20-30K | 0~10kV | 0~400mA | 4000W | Adjustable 20kHz to 30kHz | |
| AHV10-400-FF20K | 0~10kV | 0~400mA | 4000W | Fixed 20kHz | AHV10-400-AF20-40K | 0~10kV | 0~400mA | 4000W | Adjustable 20kHz to 40kHz | |
| AHV10-400-FF30K | 0~10kV | 0~400mA | 4000W | Fixed 30kHz | AHV10-400-AF20-50K | 0~10kV | 0~400mA | 4000W | Adjustable 20kHz to 50kHz | |
| AHV10-400-FF40K | 0~10kV | 0~400mA | 4000W | Fixed 40kHz | AHV10-400-AF30-40K | 0~10kV | 0~400mA | 4000W | Adjustable 30kHz to 40kHz | |
| AHV10-400-FF50K | 0~10kV | 0~400mA | 4000W | Fixed 50kHz | AHV10-400-AF30-50K | 0~10kV | 0~400mA | 4000W | Adjustable 30kHz to 50kHz | |
| AHV10-400-FF100K | 0~10kV | 0~400mA | 4000W | Fixed 100kHz | AHV10-400-AF50-100K | 0~10kV | 0~400mA | 4000W | Adjustable 50kHz to 100kHz | |
| Dimensions | 439W*133H*503D mm | |||||||||
| Weight | Approx 15.5kg | |||||||||
| AC input | 1φ3W, 220V±10% 50/60Hz | |||||||||
Why Choose Us.
Frequently Asked Questions
A DC power supply is to supply voltage and current in constant voltage (CV) or constant current (CC) mode within the rated output range. Such working characteristics is called a constant voltage/constant current automatic cross-over type. This permits continuous transition from constant current to constant voltage modes in response to the load change. The intersection of constant voltage and constant current modes is called the crossover point. Below figure shows the relationship between this crossover point and the load.
In CV mode, a regulated output voltage is provided. The output voltage remains constant as the load increases while the output current changes in response to the load changes, up till the present current limit point is reached. At that point, the output current becomes constant and the output voltage drops in proportion to the further increases in load.
Similarly, in CC mode, crossover from the CC to CV mode automatically occurs from a decrease in the load. A regulated output current is provided. The output current remains constant as the load decreases while the output voltage changes in response to the load changes.
A power supply with CV and CC operation mode can be operated in only one mode according to load situation. The power supply is in CV mode when the actual load is over the preset load capacity; and the power supply is in CC mode when the actual load is below the preset load capacity.
When the power supply is connected to a big capacitive load, it always causes increase to the output voltage in a power supply. The output voltage may make fast increase to the Over Voltage Protection point. It may also cause slow decrease when the output voltage is turned down.
To solve this problem, connect a power resistor in parallel to the output terminals of the power supply; at the same time, connect a diode in serial between output terminals and the load.
When an inductive load is connected to the power supply, it will cause a reverse polarity induction electric motive force when the power supply is turned on or off, or when preset the output voltage. The pulse noise caused by an inductive load will also affect the power supply, especially when the pulse noise has the same polarity with the output of power supply.
To avoid effect or damage to the power supply, connect a diode in serial between the output terminals of power supply and the load; at the same time, connect a power resistor and a capacitor in parallel to the load to make a R-C snubbed circuit, which will significantly restraint generation of the noise.
When use the power supply to charge a battery, such as accumulator and ni-mh battery, the recommended protection measures is to connect a diode between the power supply and the battery. When the output electrolytic capacitor of the power supply is charged, connecting a load (battery) may cause sparks. This is normal. After the two of them get to equal voltage, the sparks will disappear.
Even if the peak current of a pulse load, such as motor, bulb, DC-DC or DC-AC converter module, does not exceed the rated current of the power supply, it will also cause voltage drop or instability to the output.
A basic solution is to connect a inductor in serial between the power supply and the load. Or, choose a power supply with higher rated current.
If the pulse circuit has a small pulse width or low peak current, another solution is to connect a capacitor with large capacity. A reference to choose capacity of a capacity is: 1000uF capacity to a 1A current.
When the power supply is connected to a load that will cause reverse polarity current to the power supply output, the output voltage will increase, because the power supply cannot absorb the reverse polarity current from the load.
A solution is to connect a diode in serial between the output terminal and the load; at the same time, connect a discharge resistor in parallel to the load to absorb the reverse polarity current. When the reverse polarity current is a peak surge, connect the large electrolytic capacitor in parallel to the two ends of the load.
